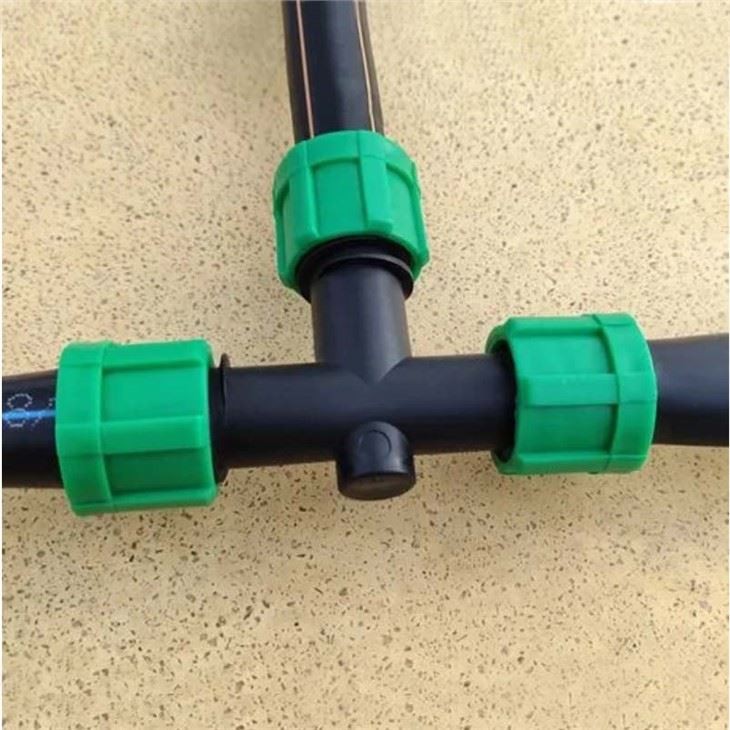

Bypass Valves for Irrigation Pipes
Bypass valves for irrigation pipes allow you to connect the PE main water pipes and the branch drip irrigation belt, so that the water flow of each drip line can be controlled independently.
Description
Drip Irrigation Valves
Introduction
This Bypass Valves for Irrigation Pipes are used to connect irrigation pipes. The product has good impact resistance at low temperature, even in winter, because of its good impact resistance, brittle crack will not occur. It is resistant to stress cracking, has low notch sensitivity, high shear strength and excellent scratch resistance. The product has good chemical corrosion resistance and can be corroded by various chemical media, and the chemical substances present in the soil will not cause any degradation to it. It is also resistant to aging and wear, so it has a long service life. It is compact, easy to carry and easy to install. Therefore, this product is a good partner to irrigation pipes, which can play a better role in irrigating plants. Buy our product is to give your plants a better growing environment.
Drip Valve Features
1. Good flexibility, not easy to bend
2. Small size, easy to carry, can be installed anywhere in the pipe
3. Good scratch resistance, good impact resistance, not easy to crack
4. Corrosion-resistant, long-term placement in the soil will not affect
Irrigation Bypass Valves installation
(1) Trim one end of the prepared drip irrigation tape flat.
(2) Determine the position where the bypass needs to be connected on the PE main hose
(3) Use a hole puncher to punch holes in the determined positions
(4) Insert the single barb end of the hose bypass valve into the drilled hole, pay attention to insert it to the end, and tighten the lock nut to ensure that the lock nut is pressed against the pipe wall.
(5) Insert the trimmed dropper tape into the other end of the valve body. After inserting it to the end, rotate the lock nut to lock the dropper tape.
(6) When the drip irrigation tape is incorporated into one end of the valve body, it must be inserted to the end.
(7) During the drilling process, the outer wall of the hose may be left inside the hose. After installation, make sure to flush.
Product Parameter
Product Name | Bypass Valves for Irrigation Pipes | Material | PE plastic |
Diameter | 16mm | ||
Application | Farm, fruit land, lawn and garden irrigation | ||
Drip Irrigation Bypass Valves Applications
Product Qualification
Shipping & Delivery
FAQ
Q: Are you a manufacturer or trading company?
A: We're a leading manufacturer of irrigation and hydroponics products located in Shandong, China. You can take a virtual video tour or come to visit our factory personally.
Q: What are your payment terms?
A: Generally, we accept T/T payment, 30% in advance and the rest before shipment. Please contact your sale representatives for details.
Q: How long is the warranty time for your PE bypass valves?
A: The warranty time is 1 year after shipping.
Q: I haven't done business with you before, how can I trust your company?
A: You can watch the video introduction verified by the world-leading inspection company Intertek. Or assign your agent to visit our factory personally.
Q: What's the delivery time of your company?
A: Well, it depends on the quantity you order. We have a large production capacity which ensures fast delivery, usually about 7 days after confirmation for most items.
Q: What's your shipment terms?
A: As for the shipment terms, we generally go FOB Qingdao or Ex Works. You can talk to your sales rep for other options.
Q: May I ask you for a free sample?
A: Yes, some free samples for PE bypass valves and irrigation connectors are available on request.
